Introduction to
functional reactive programming
with Cycle.js
Jan van Brügge & Alexander Späth
Motivation
Why streams?
Transforming data - synchronous
[1, 2, 3, 4, 5]
.map(x => x * 2)
.forEach(x => console.log(x));
Transforming data - asynchronous
Promise.resolve([1, 2, 3, 4, 5]) //Or from API
.then(arr => arr
.map(x => x * 2)
.forEach(x => console.log(x))
);
Transforming data - streaming
Observable.from([1, 2, 3, 4, 5]) //Or from a websocket
.map(x => x * 2)
.subscribe(x => console.log(x));
The catch
Array \(\subset\) Promise \(\subset\) StreamWhat problems are easier to solve with streams
Make an initial request to the server and write the data to the DOM. Update the data with a websocket.
const ws$ = websocket$.map(message => message.payload);
const http$ = response$.map(res => res.body)
.map(xs.fromArray)
.flatten();
xs.merge(ws$, http$)
.fold((data, x) => data.concat(x), [])
.compose(debounce(50)) //Batch DOM updates
.subscribe({ next: updateDOM });
Cycle.js
Cycle is like the physicist’s dream of a unified theory of everything, but for JavaScript.
Nick Johnstone
A Cycle.js app is just a function taking sources as input and returning sinks as result.
Cycle.js - short summary
- Common interface are streams
- Cycle app = function from sources to sinks
- Expandable with own side effects

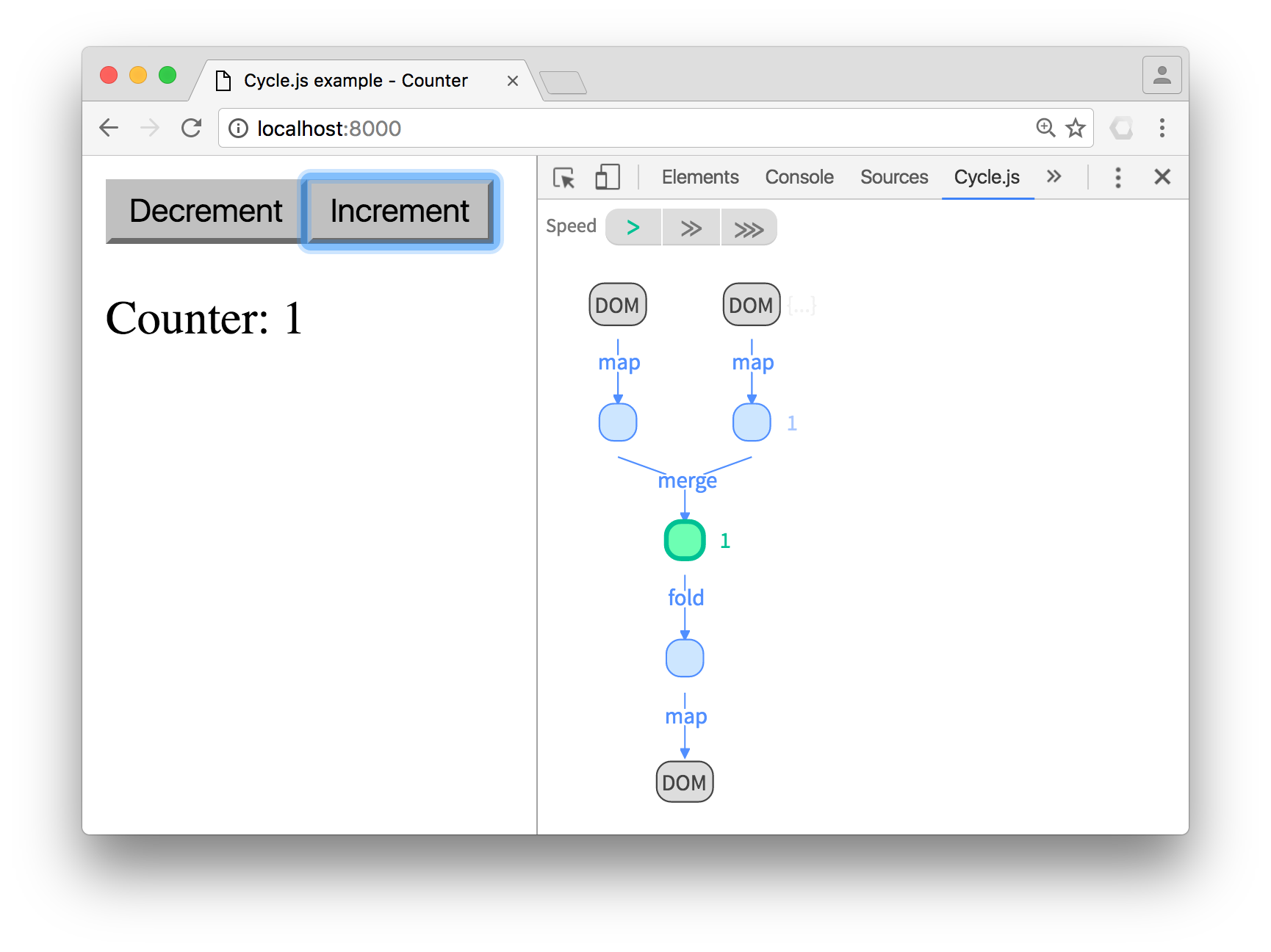

A simple counter app example
import xs from 'xstream';
import { div, button, p } from '@cycle/dom';
function Counter(sources) {
const decrement$ = sources.DOM
.select('.decrement').events('click').mapTo(-1);
const increment$ = sources.DOM
.select('.increment').events('click').mapTo(+1);
const action$ = xs.merge(decrement$, increment$);
const count$ = action$.fold((x, y) => x + y, 0);
const vdom$ = count$.map(count =>
div([
button('.decrement', 'Decrement'),
button('.increment', 'Increment'),
p('Counter: ' + count)
])
);
return {
DOM: vdom$
};
}
Implications of cycle app = function
- Nestable
- Wrappable
Wrappable - isolation
import Counter from './counter';
function main(sources) {
const counter1 = Counter(sources);
const counter2 = Counter(sources);
const vdom$ = xs.combine(counter1.DOM, counter2.DOM)
.map(children =>
Some children
{ children }
);
return {
DOM: vdom$
};
}
Problem
Both counters are activated if you press any button
Solution
Isolate them!
Wrappable - isolation
import Counter from './counter';
function main(sources) {
- const counter1 = Counter(sources);
- const counter2 = Counter(sources);
+ const counter1 = isolate(Counter, 'counterA')(sources);
+ const counter2 = isolate(Counter, 'counterB')(sources);
const vdom$ = xs.combine(counter1.DOM, counter2.DOM)
.map(children =>
Some children
{ children }
);
return {
DOM: vdom$
};
}
State management
Onionify
A fractal state management tool for Cycle.js applications.
import xs from 'xstream';
function Counter(sources) {
const decrement$ = sources.DOM
.select('.decrement').events('click')
.map(_ => state => state - 1);
const increment$ = sources.DOM
.select('.increment').events('click')
.map(_ => state => state + 1);
const reducer$ = xs.merge(decrement$, increment$);
const vdom$ = sources.onion.state$.map(count =>
div([
button('.decrement', 'Decrement'),
button('.increment', 'Increment'),
p('Counter: ' + count)
])
);
return {
DOM: vdom$,
onion: reducer$
};
}
Fractal state
import Counter from './counter';
function main(sources) {
const counter1 = isolate(Counter, 'counterA')(sources);
const counter2 = isolate(Counter, 'counterB')(sources);
const vdom$ = xs.combine(counter1.DOM, counter2.DOM)
.map(children =>
Some children
{ children }
);
return {
DOM: vdom$,
onion: xs.merge(counter1.onion, counter2.onion),
log: sources.onion.state$ //what will be printed?
};
}
{
counterA: 5,
counterB: 3
}
Lenses
Compare the parent state to the child state
{
counterA: 5,
counterB: 3
}
//childA
5
//childB
3
Lenses
We can model this behavior
-- on the source (state$)
isolateSource :: ParentState -> ChildState
-- on the sink (reducer$)
isolateSinks :: (ParentState, ChildState) -> ParentState
Lenses
We can model this behavior
-- on the source (state$)
get :: ParentState -> ChildState
-- on the sink (reducer$)
set :: (ParentState, ChildState) -> ParentState
Lenses
We can model this behavior
const lens = {
get,
set
};
Lenses
const halfLens = {
get: state => state.counterA / 2;
set: (state, n) => ({
...state,
counterA: n * 2
})
};
function main(sources) {
const counter1 = isolate(Counter, 'counterA')(sources);
const counter2 = isolate(Counter, {
onion: halfLens,
'*': 'counterB'
})(sources);
const vdom$ = xs.combine(counter1.DOM, counter2.DOM)
.map(view);
return {
DOM: vdom$,
onion: xs.merge(counter1.onion, counter2.onion),
};
}
Collections
interface TabbarState {
active: number;
tabs: TabState[];
}
interface TabState {
isActive: boolean; //Automaticly set by the lens
id: number;
name: string;
}
const selectionLens = {
get: state => state.tabs.map(t => ({
...t,
isActive: t.id === state.active
})),
set: (state, tabs) => ({
...state,
active: tabs.reduce((acc, curr) => {
return curr.isActive && curr.id !== state.active ?
curr.id : acc;
}, state.active),
tabs: tabs.map(omit('isActive'))
})
};
Collections
const TabbarComponent = makeCollection({
item: TabComponent,
itemKey: itemState => itemState.name,
collectSinks: instances => ({
DOM: instances.pickCombine('DOM').map(children =>
{ children }
),
onion: xs.merge(
xs.of(() => initialState),
instances.pickMerge('onion')
)
})
});
export default const isolatedTabbar = isolate(TabbarComponent, {
onion: selectionLens,
'*': null
});
Quick FAQ
- How do I start? Read the docs and/or watch the egghead.io course
- Do I have to use xstream? No, you can also use RxJS or Most.js
- How big is the community? Currently over 8400 github stars, active support on gitter
- How is the financial support? We are on OpenCollective, being sponsored by Verizon and others
